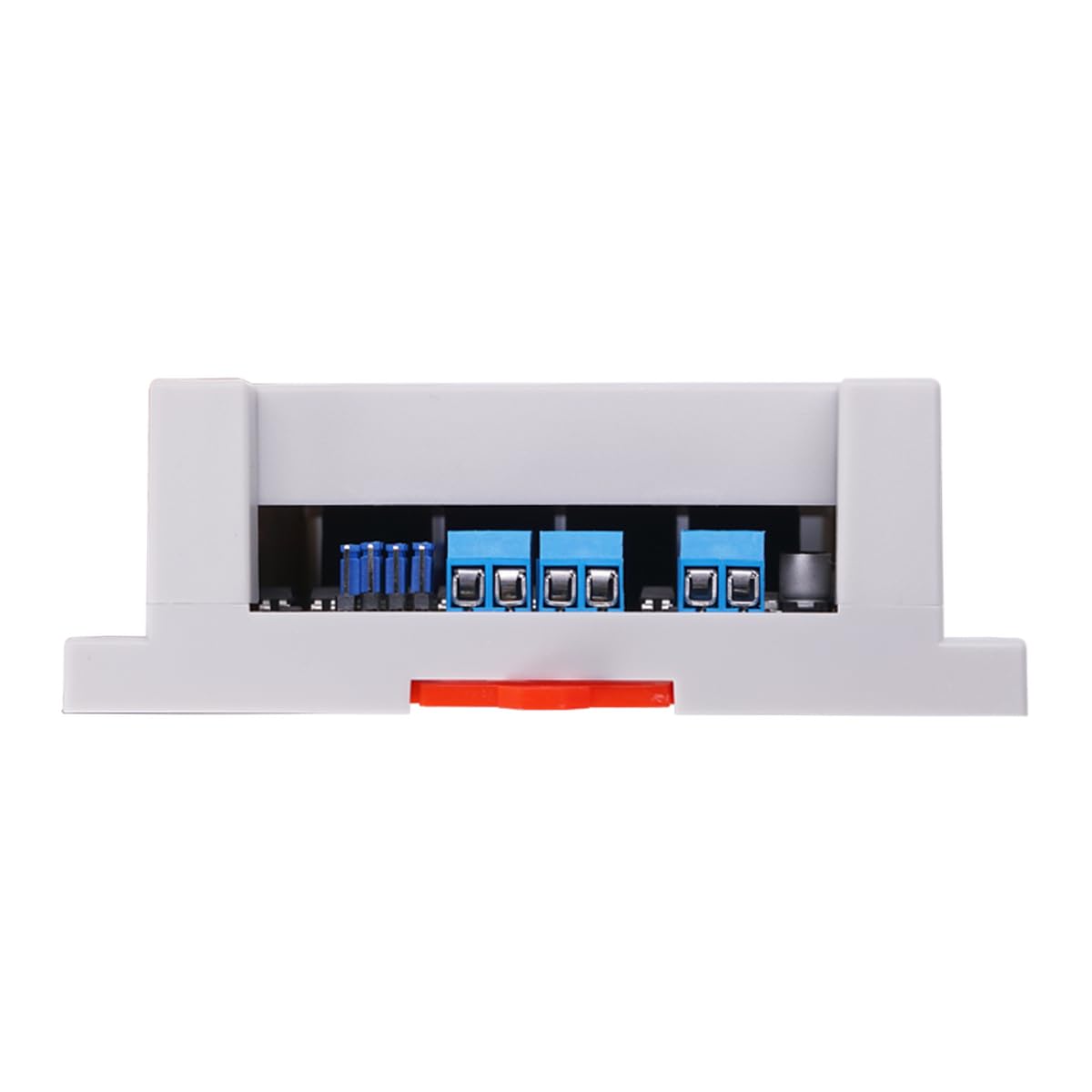

Industrial with Opto-Coupler Isolation GPIO Relay 3-24V Level Control 5-32V Power Supply with ABS DIN Rail Housing High and Low Level Dual Mode (4-Channel Relay)
Product details
| Management number | 228360271 | Release Date | 2026/05/31 | List Price | $12.00 | Model Number | 228360271 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- Industrial-grade GPIO relay, supports various types of signal level triggering, high level 3-24V, low level 0-1.5V, applicable to a rich environment, easy to operate, easy to install, rapid response
- With optocoupler isolation, using optical signals to transmit electrical signals, to achieve physical isolation of the circuit, the overall stability of the system is higher, to ensure that the implementation of the model of the stability of the transmission, support for 5-32V input voltage.
- Optimized relay utility device and circuit, NC/COM/NO type layout relay, can achieve 10ms level of relay rapid continuous response 100,000 times, AgSnO2, AgCdo(<<100ppm) material contacts
- Wider load circuits, copper plated and tinned to ensure the voltage and current resistance of the relay load side, Typical load: NC: 5A 277VAC; NO: 10A 250VAC, 10A 28VDC, Maximum switching power: NO 2770VA/280W; NC 1250VA.
- High and low level mode switching jumper cap with power indicator and each circuit suction signal indicator, more convenient to use, DIN rail housing for easy installation, copper-plated studs, more convenient storage.
| ASIN | B0F8BCRL4T |
|---|---|
| Model | GPIO Relay PRO |
| Brand Name | diustou |
| Unit Count | 4.0 Count |
| Part Number | GPIO Relay PRO CB |
| Coil Voltage | 5 Volts (DC) |
| Contact Type | Nc/Com/No |
| Manufacturer | shenzhenyousimaiermaoyiyouxiangongsi |
| Mounting Type | DIN Rail Mount |
| Connector Type | Gpio |
| Current Rating | 500 Milliamps |
| Operation Mode | Automatic |
| Contact Material | Agsnoz, Agcdo |
| Specification Met | CE |
| Included Components | GPIO Relay |
| Contact Current Rating | 10 Amps |
| Minimum Switching Voltage | 5 Volts |
