Auxbeam 8 Gang Switch Panel RA80 XL RGB Momentary Pulsed Toggle Switch Panel, Dimmable Backlight Multifunction Switch Panel with Memory Function for 12-24V Truck Offroad Car Marine, 3 Years Warranty
$90.00
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by kundiso.org
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here.
$90.00
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by kundiso.org
Free 30-day returns Details
Product details
| Management number | 212595887 | Release Date | 2026/04/06 | List Price | $36.00 | Model Number | 212595887 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- Upgraded 5.3 Inch Large Panel: Auxbeam RA80 XL 8 gang switch panel is 5.3 x 3 inches large, with each button upgraded to 1 inch for more convenient and quick operation. It has an IP65 waterproof rating and comes with a waterproof cover for the panel.
- 3 Lighting Modes: Auxbeam multifunction switch pod, not limited to ON/OFF and memory function, each button can also be programmed to 3 lighting modes: Toggle, Momentary and Pulsed.The red light means toggle, lights or devices always on; Blue light means momentary, lights or devices only stays on when you hold it down and turns off when you release it; Green light means pulsed, strobe mode.

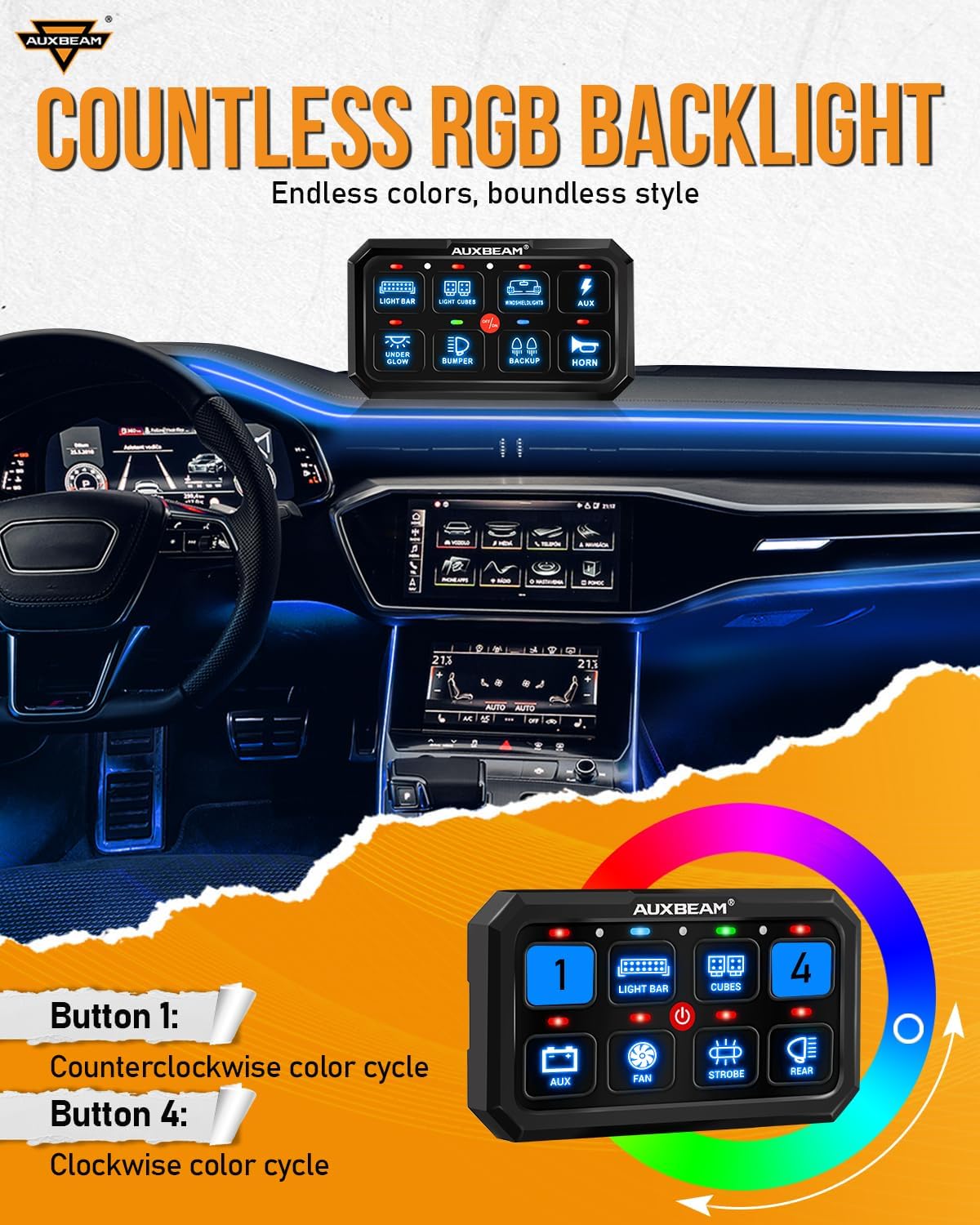

- RGB Backlight&Auto-Dimming: Auxbeam RGB 8 gang switch panel allows you to choose from an unlimited number of colors to match your vehicle's color scheme and your personal preferences. The backlight brightness of the panel also adjusts automatically to the surrounding environment, providing a comfortable level of brightness for your driving experience.
- Widely Application: RA80 XL Auxbeam switch controller has an angular rock aluminum frame that gives it an aggressive, hard style to matches your vehicle's look. It can control up to 8 LED lights or electrical devices and can be easily installed anywhere in your car without complicated wiring. Widely used for off-road, truck, boat, RV, car, SUV, and yacht. 3-year protection provided by Auxbeam.
- Widely Application: The 8 gang RA80 XL switch panel is widely compatible with such as Truck, Boat, Car, Bus, Off-road, Powersports, Marine, ATV, UTV, SUV, Side by Side, SxS, Heavy-duty machines, etc. We equipped with 2 kinds of mounting brackets and double-sided tape, you can mount the panel or use the double-sided tape to stick the panel in the best location for your vehicle, such as the dash panel, center console, overhead sunglasses holder, etc.
- Upgraded Accessories: Auxbeam RA80 XL switch panel has a working voltage of DC 12-24V and a maximum current of 60A. The rated voltage is 12V 20A / 24V 10A, and the maximum power is 720W/12V or 1200W/24V. The package includes 1 × RA80 XL switch panel, 1 circuit control box, 1 circle breaker, 60pcs labels, mounting brackets, a 10ft wire harness, power harness, fuse wire & adapter, and an installation kit
- This Auxbeam RA80 XL switch panel DOESN'T support Bluetooth app control
| Color | RGB |
|---|---|
| Model | RA80 XL RGB 8 Gang Switch Panel |
| Wattage | 12000 watts |
| Terminal | Screw |
| Brand Name | Auxbeam |
| Unit Count | 1.0 Count |
| Switch Type | Toggle, Momentary, Pulsed |
| Circuit Type | 8-way |
| Contact Type | Normally Closed |
| Manufacturer | Auxbeam |
| Material Type | Aluminum |
| Mounting Type | Panel Mount |
| Connector Type | Plug In |
| Control Method | Push Button |
| Current Rating | 60 Amps |
| Operation Mode | Toggle, Momentary, Pulsed |
| Controller Type | Push Button |
| Number of Items | 1 |
| Contact Material | Aluminum |
| Country Of Origin | China |
| Operating Voltage | 24 Volts (DC) |
| Specification Met | UL |
| Included Components | RA80 XL RGB 8 Gang Switch Panel Kit |
| Number of Positions | 8 |
| Warranty Description | 3 Years Warranty |
| Connectivity Protocol | Bluetooth |
| Upper Temperature Rating | 221 Degrees Fahrenheit |
| International Protection Rating | IP57 |
